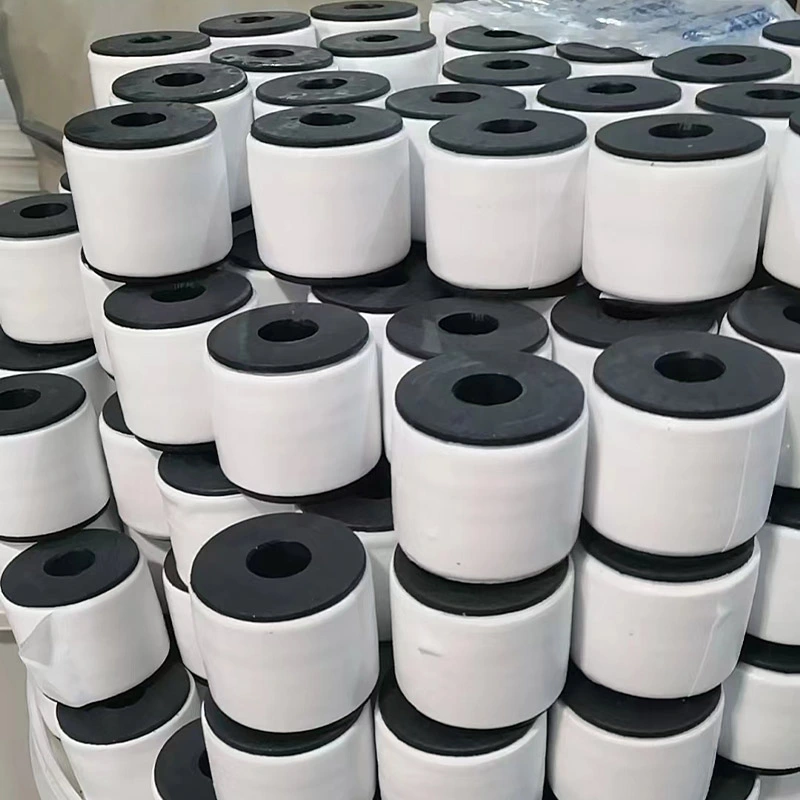

Name: PTFE Tape
Brand: Jiangsu Xinrui Plastic Technology Co.,Ltd.

Specification of PTFE Tape

Fluoroplastic has a wide range of operating temperatures, is resistant to water vapor, climatic and bacterial influences and is a durable material. It also has excellent electrical insulating, anti-friction and anti-adhesive properties. Thanks to these qualities, PTFE Tape ensures tightness of threaded connections operating at pressures up to 9.8 MPa.

We provide PTFE Tape in the following sizes: thickness from 0.10 mm to 0.25 mm, width up to 160.0 mm.

Width	12mm(1/2")19mm(3/4")25mm(1")60mm（1.8''）
Thickness	0.075mm 0.1mm 0.2mm
Length	8m-50m
Density	0.3~1.0g/cm3
Temperature	-190°℃ to +280°C
Tensile Strength	8N/mm2
Elongation	25%min
Pressure Resistance	up to 30Bar

Quality indicators of PTFE Tape

Name	Brabd
Name	FUM1 (highest grade)	FUM2
Appearance	The tape is white, smooth, without tears or folds
Tape thichness, мм	0,100 ± 0,02	0,12 ± 0,09
Width, мм	10,15, 20, 60	15
Relative extension, %, no less	80	40
Tensile strength, MPa, no less	10	8

APPLICATION

The tape is non-toxic and oil and petrol resistant. PTFE Tape is an anti-corrosion, self-lubricating, chemically inert sealing material. Operating temperature of the PTFE Tape: from –60°С to +200°С.

PTFE Tape is applied:

• For sealing threaded connections of process pipelines through which aggressive liquids and gases are transported (including in hot and cold water supply pipelines);

• For sealing threaded connections in equipment of the food, pharmaceutical, chemical, construction and other industries at ambient pressure up to 9.8 MPa.

• Contains lubricant – medical vaseline oil according to GOST 3164-78 (from 17% to 20%).
