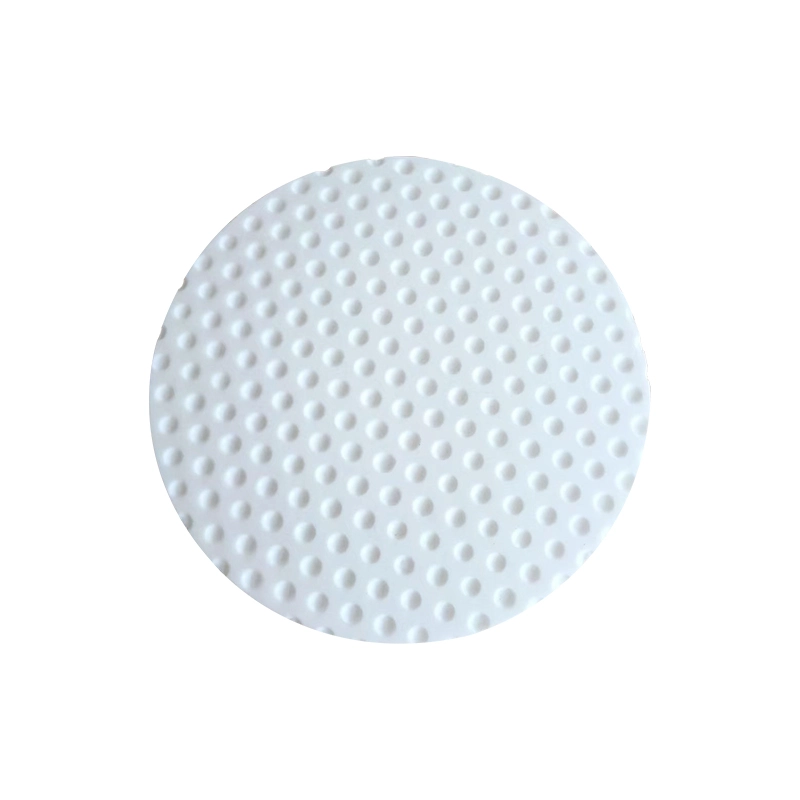

The PTFE dimple bridge plate is designed to distribute and transfer loads while allowing for controlled horizontal and rotational movement of the bridge components. The dimples on the plate create a network of contact points, increasing the surface area and improving the load distribution.
Product name | The implementation of standards | The technical performance index | Remarks | ||||
The proportion of | (Mpa) Tensile strength | Crack elongation | Witstanding voltage | ||||
Molded sheet | Oridinary type | ZGB33002 SFB-1 & SFB-2 | 2.10-2.30 | ≥15 | ≥150 | SFB-1≥10 | |
Bridge use | JT/T901-2014 | 2.13-2.20 | ≥30 | ≥300 | |||
Skived sheet | ZGB 33002 SFB-1 & SFB-2 | 2.1-2.30 | ≥15 | ≥150 | SFB-1≥10 | ||
Name of commodity | Diameter/Length of side(mm) | Thickness(mm) |
Round plate | 140-1800 | 2-10 |
Square plate | 2000*2000 | 2-10 |
Items | Density | Tensile Strength | Elongation at break | Ball indentation hardness H132/60 |
Unit | g/cm3 | Mpa | % | Mpa |
JT/T901-2014 Standard | 2.0-2.1 | ≥30 | ≥300 | 26.4≦H≦39.6 |
