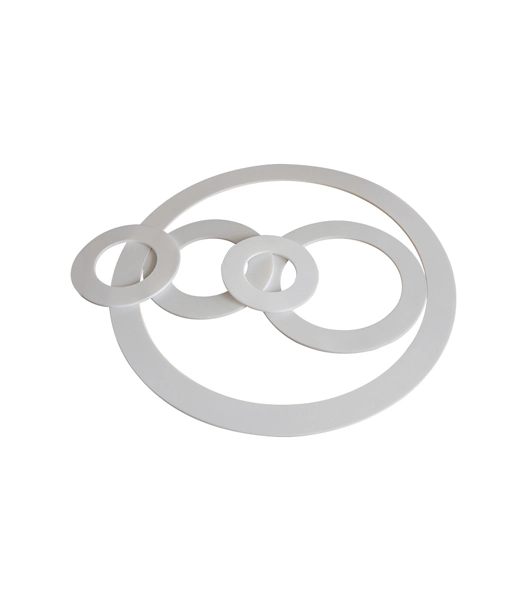

A PTFE gasket is a type of sealing component made from PTFE material, which is a synthetic fluoropolymer known for its excellent chemical resistance and low friction properties. PTFE gaskets are commonly used in various industries and applications where a reliable and effective seal is required.
Type | Size |
DN15 | 22*51*3 |
DN20 | 27*61*3 |
DN25 | 34*71*3 |
DN32 | 43*82*3 |
DN40 | 49*92*3 |
DN50 | 61*107*3 |
DN65 | 77*127*3 |
DN80 | 89*142*3 |
DN100 | 115*162*3 |
DN125 | 141*192*3 |
DN150 | 169*218*3 |
DN200 | 220*273*3 |
DN250 | 273*329*3 |
DN300 | 325*384*3 |
DN350 | 377*444*3 |
DN400 | 426*495*3 |
DN450 | 480*555*3 |
DN500 | 530*617*3 |
DN600 | 630*734*3 |
DN700 | 720*804*3 |
DN800 | 820*911*3 |
DN900 | 920*1011*3 |
DN1000 | 1020*1128*3 |
| Item | Data | Unit |
| Density | 2.1-2.2 | g/cm³ |
| Tensile strength | 25-45 | Mpa |
| Elongation at break | 200-350 | % |
| Compression strength | 24 | Mpa |
| Shore D hardness | 50-60 | |
| Friction coefficient | 0.01 |
