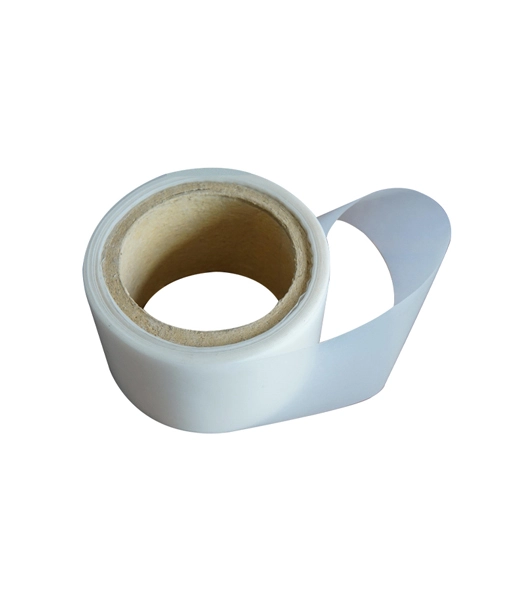

Name: PTFE Film
Brand: Jiangsu Xinrui Plastic Technology Co.,Ltd.

Polytetrafluoroethylene Film Specification

Product name	Classification	Specification(mm)			Remarks
Product name	Classification	Thickness	Width	Length	Remarks
The original color film	Directional	0.02-0.10	40-100	≥30000
	Semi directional	0.03-0.10	40-100	≥30000
	Non directional	0.04-0.50	40-300	≥1000
	Non directional	0.05	1200-1350	≥1000
Color film	Semi directional	0.035	40-90	≥30000	Color: red orange yellow green purple brown black etc
Color film	Non directional	0.04-0.10	40-100	≥2000	Color: red orange yellow green purple brown black etc

PTFE Film Technical Indexes

Project	Company	Technical indicators					Remarks
		SFM-1	SFM-2		SFM-3
		Directional	Directional	Non directional	Directional	Non diractional
Tensile strength	Mpa%	≥30	≥20	≥10	≥30	≥10	SFM-1: As the capacitor dielectric
The elongation at break		≥30	≥60	≥100	≥30	≥100
1mhz Dielectric loss tangent value		≦2.5x10			≦30x10		SFM-2: Used for the insulation of conductor
		Average value 1.8-2.2			Average value 1.8-2.2
DC breakdown strength (room temperature)	KV/mm	Average value≥200	Average value≥600	Average value≥40	Average value ≥60	Average value ≥30	SFM-3: As the electrical meter insulation and sealing gaskets etc.
		Lowest value: 40	Lowest value: 6	Lowest value: 4

PTFE's excellent electrical insulation, high and low temperature resistance and not sticky, especially the dielectric properties of its impact is not affected by environment and frequency, develop its wide application in electronic and electrical appliances. As one of the leading PTFE film manufacturers, Our embryo is made of PTFE resin with quality high cleanliness. After the production process of truning and pressing the directional. It can be made into semi directional and oriented PTFE film, clean, smooth and excellent dielectric properties characteristics.

PTFE Film Roll Features

Temperature resistance: It is able to work stably between -180°C to +260°C.
Excellent chemical corrosion resistance: Applicable medium includes oil, acid solution and almost all chemical materials.
Excellent non-sticky property: With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.
Anti-aging, weathering resistance.
Excellent insulation property.
Filled material: Filled PTFE has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

PTFE Film Uses

Electrical instrument gaskets used in various media.
Capacitor media.
Wire wrap insulation.
Can also be used as anticorrosive, high temperature resistant sealing or anti-friction materials.
Color film is a small section of high temperature resistance and easy to distinguish wire ideal insulation material.
