Name: PTFE Slide Plate of Bridge Bearings
Brand: Jiangsu Xinrui Plastic Technology Co.,Ltd.

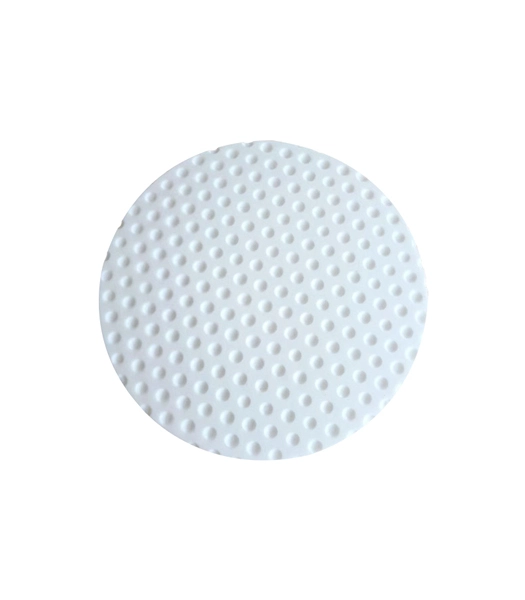

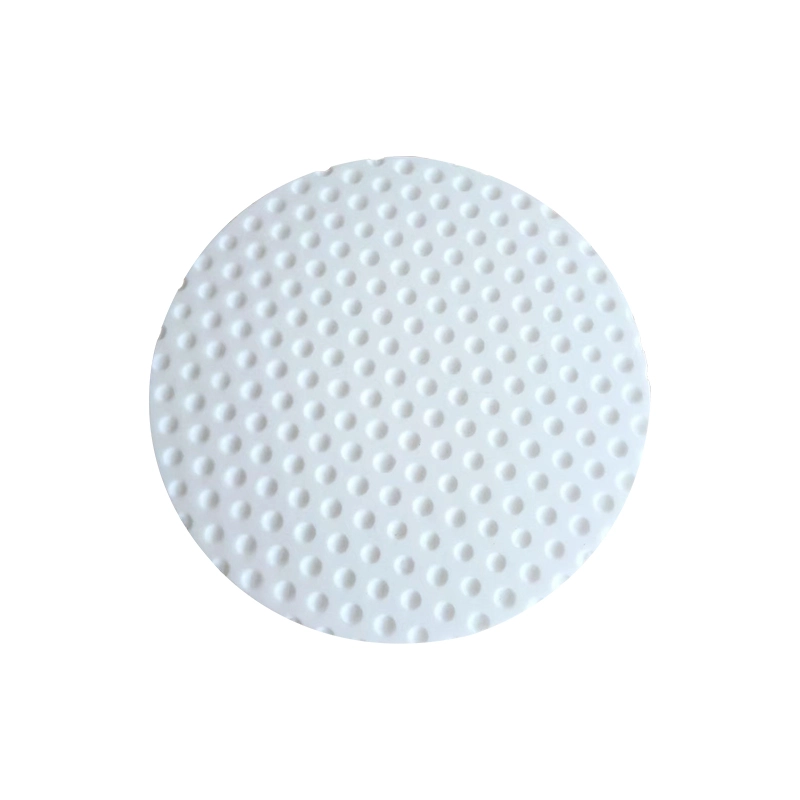

PTFE Slide Plate of Bridge Bearings

The slide plate is made of PTFE (Polytetrafluoroethylene), a high-performance polymer known for its self-lubricating properties, low friction, and excellent resistance to environmental elements. PTFE is an ideal material for bridge applications as it can withstand harsh weather conditions, chemicals, and UV exposure.

The Technical Indexes of PTFE Slide Plate of Bridge Bearings

Product name	The implementation of standards		The technical performance index				Remarks
Product name	The implementation of standards		The proportion of	(Mpa) Tensile strength	Crack elongation	Witstanding voltage	Remarks
Molded sheet	Oridinary type	ZGB33002 SFB-1 & SFB-2	2.10-2.30	≥15	≥150	SFB-1≥10
Molded sheet	Bridge use	JT/T901-2014	2.13-2.20	≥30	≥300
Skived sheet	ZGB 33002 SFB-1 & SFB-2		2.1-2.30	≥15	≥150	SFB-1≥10

Types and Specifications of PTFE Slide Plate of Bridge Bearings

Name of commodity	Diameter/Length of side(mm)	Thickness(mm)
Round plate	140-1800	2-10
Square plate	2000*2000	2-10

The Main Technical Indicators of PTFE Slide Plate of Bridge Bearings

Items	Density	Tensile Strength	Elongation at break	Ball indentation hardness H132/60
Unit	g/cm3	Mpa	%	Mpa
JT/T901-2014 Standard	2.0-2.1	≥30	≥300	26.4≦H≦39.6
